100W LED Garden Light IP66 IK09 LED Area Light Pathway Light Park
Courtyard Lantern Light
Product Description
LED Post Top Light is high efficiency pole-mounted fixtures
designed to offer superior energy efficiency and quality of light
to light up pathways and outdoor areas like shopping malls and car
parks. Wattage selectable and CCT selectable by remote controller,
with multi fuction, like dimmable and emergency options are perfect
for new installations or replacement of metal halide or
high-pressure sodium lighting, which is an ideal choice for
walkways, parking areas, and landscaped environments in commercial,
industrial, and residential settings.
This Post Top Light is with an unique design, which is not only used as an post top light, but

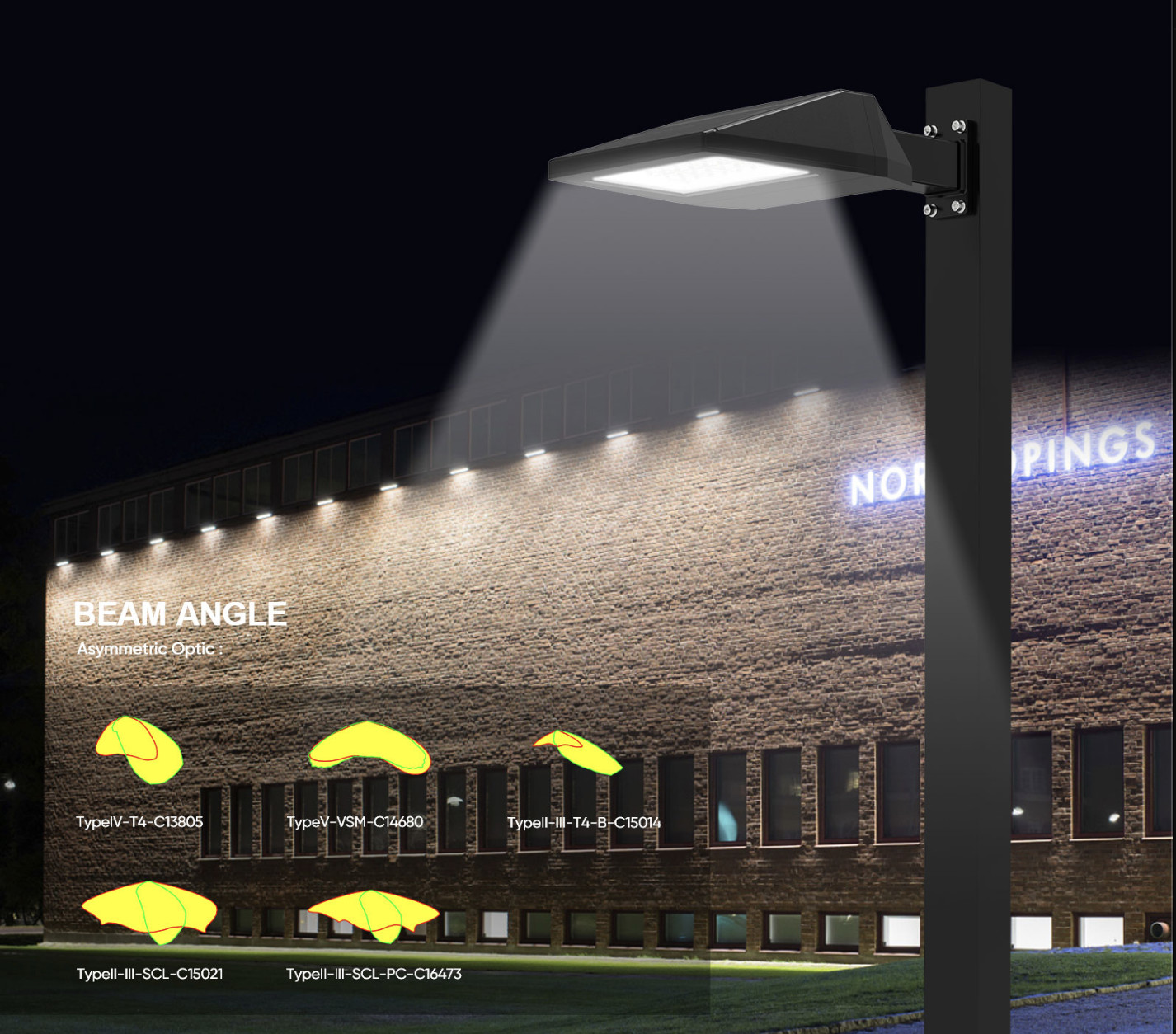

also a wall light fixtures. Beam angle can be Type II/III / Type IV
/ Type V, this can meet any demand for the projects.
LED
post-top area light data sheet.pdf
Features
●Aluminium with Polycarbonate or tempered glass
●Lumileds or San'an LEDs and Inventronics Driver
●Ultra high efficiency up to 140lm/w
●Surge protection 10KV
●Multi optics, Type II/III / Type IV / Type V
●Protection,OTP,OCP,OVP,SCP
●Suitable for wet locations, IP66 rated and IK09 rated
●Multi installation,wall mounted, racket munted or post top.
●Operation Condition temp:-30 ° to +50 °, Humidity:10%-90%RH
●Options for DALI or 1-10V dimming
●Reduces spill light and glare, Zero uplight, LEDiL lens for
excellent light control
Specification
| Model | Power | Light efficiency | Luminous Flux | Input Voltage | Dimension | IP code | Warranty |
| KS-AL-30 | 30W | >140lm/w | 4200LM | AC100-277V | 328*240mm | IP66 | 5 year |
KS-AL-50
| 50W | >140lm/w | 7000LM | AC100-277V | 328*240mm | IP66 | 5 year |
KS-AL-70
| 70W | >140lm/w | 9800LM | AC100-277V | 328*240mm | IP66 | 5 year |
KS-AL-100
| 100W | >140lm/w | 14000LM | AC100-277V | 328*240mm | IP66 | 5 year |
